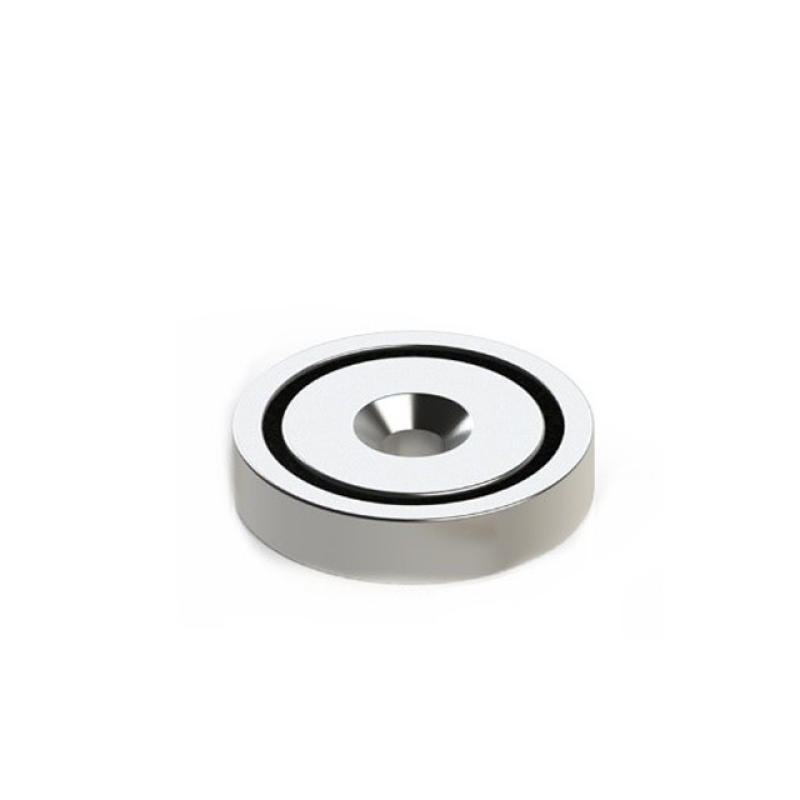

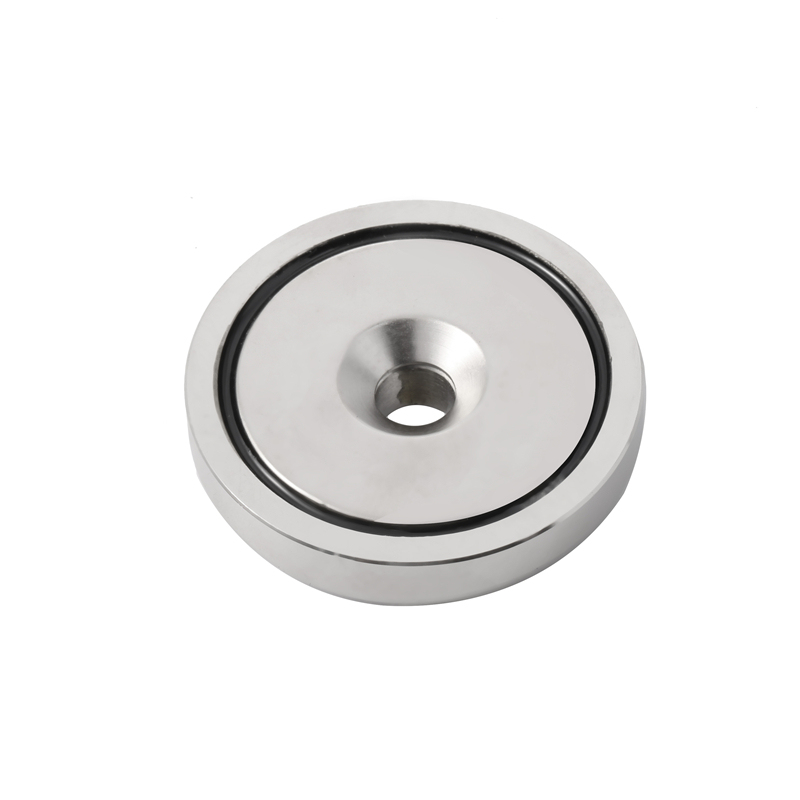

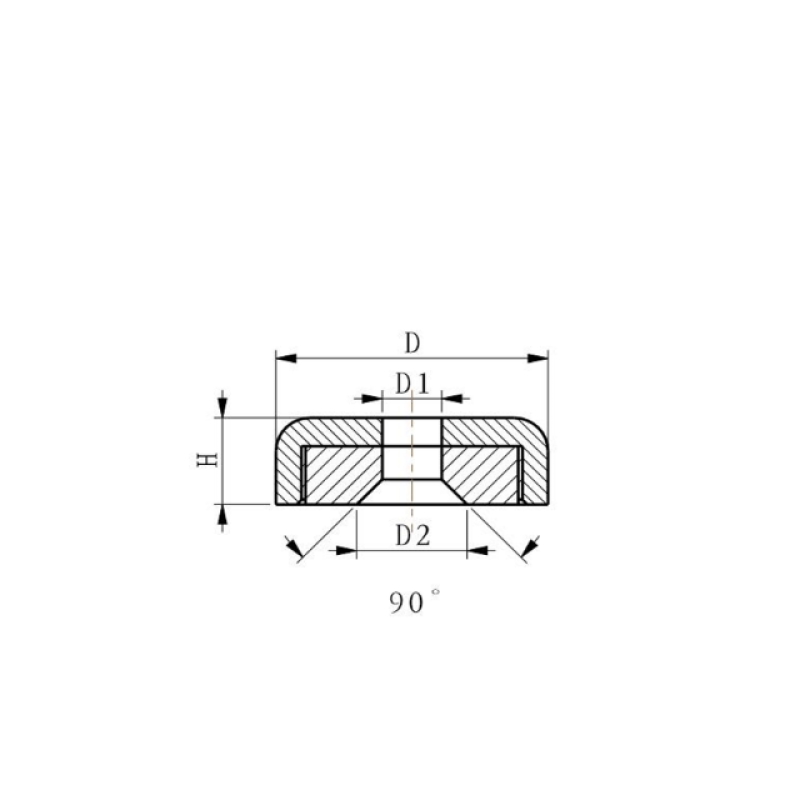

POT Magnet with countersink 20X7-D4.5/8.5-N35/NI
| Art Nr. | POT-20X7-D4.5/8.5-N35-NI |
| Diameter | 20 mm |
| Thickness | 7 mm |
| Inner Hole | 4.5 mm |
| Open hole | 8.5 mm |
| Tolerance | +/-0.1 mm |
| Surface Treatment | Ni-Cu-Ni |
| Orientation | Axial |
| Weight | ~14 g |
| Volume | ~2085 mm3 |
| Adhesive Force | ~11 Kgs |
| Br KGs | 11.8-12.4 |
| HcB KOes | >11.6 |
| HcJ KOes | >12.0 |
| BH Max MGOe | 33-36 |
| Max. Working Temp. °C | 80 |
- Item No. POT-20X7-D4.5/8.5-N35-NIMOQ 90 Pcs
- Product size 11 x 9 x 7 cmProduct weight 1.4 kg
- CTN. Spec 34*24*18 cm / 720PcsG.W/N.W 13 / 11 kg
Choice
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
